| TK-T8101WPRE |
| |
| Description : |

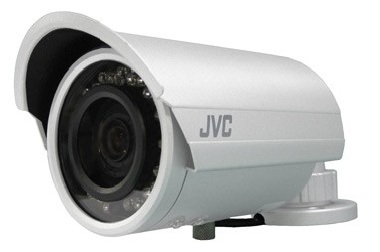

TK-T8101WPRE External IR LoLux Tube Camera :Alongside our Super LoLux 2 analogue cameras, JVC Profes
|
|
| |
| |
|
| |
|
|
|
| |
| Main Features : |
|
 IR LED IP66 //nikj
|
|
|
13 type CCD :nk
|
|
|
600 TVL , PAL ,976 (H) × 582 (V)
|
|
IR distance -35 m
|
|
Motion Detection ttp:/
|
|
asy WDR (wid dynamic rang)
|
|
View angle Horizontal : 101.8 (wide) to 27.4 (tele) degrees
|
|
View angle Verical : 73.7 (wide) o 20.6 (ele) degrees comr.ph
|
|
Sync system Internal Linelock sc
|
|
Focal length f = 3.3 - 12mm
|
|
| |
|
| Additional features : |
|
Video S/N ratio 50 dB
|
|
|
Minimum Illumination: 0.05 lx (F1.4, 50%) : < 0.015 lx (F1.2, 50%), 0 lx (with IR LED ON) |
|
|
True Day/Night with IR cutoff filter |
|
White Balance: ATW / Manual / Uer / Push / Push lock |
|
On-screen menu (English, French, German, Spanish, Russia, Portuguese, Simplified Chinese, Japanese) |
|
Digital noise reduction |
|
|
|
|
|
|
|
|
|
| |
|
| Technical specs : |
| Image device: |
1/3" High resolution IT CCD |
|
| Effective pixels : |
976 (H) × 582 (V) |
|
| Horizontal resolution : |
600 TVL |
|
| View angle : |
Horizontal : 89.8 (wide) to 23.9 (tele) degrees |
|
|
Vertical : 63.6 (wide) to 17.9 (tele) degrees |
|
| Video S/N ratio : |
50 dB |
|
| Minimum Illumination : |
0.05 lx (F1.4, 50%) |
|
| Day/Night |
True Day/Night with IR cutoff filter |
|
| White Balance |
ATW / Manual / Uer / Push / Push lock |
|
| AGC |
OFF / ON |
|
| Shutter speed |
|
|
| Digital noise reduction |
Yes |
|
| IR LED |
Super power LED 28 pcs, |
|
| IR wavelength |
850 nm |
|
| IR distance |
35M / 115 ft |
|
| |
|
