GY-HM650E |
|
Description : |

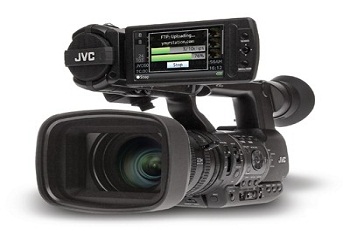

Mobile newsgathering is now faster and better then ever with the introduction of JVC's GY-HM650. Small and light enough to be used anywhere, the GY-HM650 exceeds the performance of many traditional ENG style units and offers capabilities never before available on any professional camera. Dual codecs make it possible to record for 2 screens simultaneously: full HD on one memory card and a smaller web-friendly file on another card. This allows for instant transfer the footage back to the station with the GY-HM650's built-in FTP and Wi-Fi connectivity.
Equipped with three, 1/3-inch 1920x1080 12-bit CMOS sensors, the lightweight GY-HM650 records HD or SD footage in multiple file formats, including native XDCAM EX™ (.MP4), Final Cut Pro™ (.MOV), and AVCHD, to non-proprietary SDHC or SDXC media cards. It also records .MXF files with rich descriptive metadata that is optimized for asset management. The camera also includes HD-SDI and HDMI outputs for easy monitoring of HD footage.
|
|
|
|
|
|
|
|
|
|
Main Features : |
|
Image sensor: 1/3" 2.2M pixels progressive scan 3CMOS .
|
|
|
Internal synchronization
|
|
|
Optical image stabilizer .
|
|
Lens: Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm) .
|
|
Filter diameter: 72mm .
|
|
Shutter speed: 1/4 to 1/10000 .
|
|
Gain: -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC .
|
|
ND filter: 1/4, 1/16, 1/64 .
|
|
3.5” 920K pixels, 16:9 LCD display .
|
|
0.45” 1.22M pixels, 16:9 viewfinder .
|
|
|
|
Additional features : |
|
2x SDHC/SDXC memory card slots for Class 6/10 .
|
|
|
Video codec: MPEG2 Long GOP(HD), AVCHD, H.264(SD) . |
|
|
File format: MOV(HD/SD:H.264), MP4(XDCAM EX), MTS(AVCHD), MXF(GY-HM650 only) . |
|
Audio recording: LPCM 2ch, 48kHz/16-bit(MPEG-2 Long GOP/H.264), AC3(AVCHD) . |
|
Video output: AV output (f3.5mm mini jack x1) SDI output (BNC x1) HDMI output x1 . |
|
Audio input: XLR x2 (MIC,+48V/LINE), f3.5mm mini jack x1 . |
|
Audio output: AV output (f3.5mm mini jack x1) . |
|
Headphone: f3.5mm mini jack x1 . |
|
Time code link input/output: RCA x1 . |
|
Weight: Approx. 2.4kg |
|
|
|
