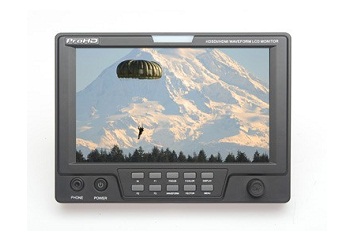

DT-X71F

Description : The DT-X71 series monitors provide an affordable high quality solution for field and studio applications. The DT-X71F is the most feature-rich model in the series. It is a 7-inch HDSDI/HDMI LCD monitor, with a high resolution 1024 × 600 panel, dual TALLY lights, image rotate and flip. It integrates a wide rage of professional functions including waveform, vector scope, RGB histogram, red/blue switchable peaking, focus assist, false color, blue only, zebra, rotate and flip, 16-ch HDSDI audio meter, time code, and internal color bars. The DT-X71F accepts 2 HD/SD-SDI, 1 HDMI and 1 Composite video, and has 2 HD/SD-SDI loop through outputs, and 1 HDMI converted to SDI output. It's powered via a 4-pin XLR 12V DC connector or a snap-on 7.2V battery (optional).




back <<

Main Features :
High resolution 7" LCD Panel
16:9, 1024x600, 16.77 million colours, 900:1 contrast and H160°/ V160° viewing angles
- 2 HD/SD-SDI, 1 HDMI, 1 composite input
2 HD/SD-SDI Loop through outputs
HDMI converted to SDI output
DSLR scale zoom in
Waveform (Y, Cb, Cr, R, G, B) and full scale
Vectorscope for both SDi and HDMI
Histogram (R,G,B)
Zebra stripes

Additional features :
Peaking focus assist (red/blue switch)
Blue only mode for hue and saturation adjustment
False colour mode for exposure setting
G sensor auto image flip
3 user definable front mounted function keys
SDI timecode
User editable video title
Front and rear 3-colour TALLY lights
Underscan/overscan switch

Technical specs :

Accessories :

Brochures and manuals :


DT-X71F brochure
