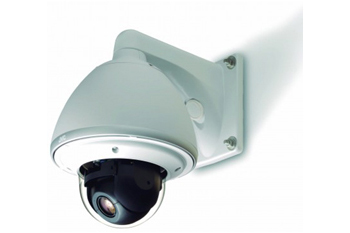

| TK-C686WPE(B) |
| |
| Description : |
36 x Optical Zoom colour camera with Direct Drive Motor for Quick, Silent, and Accurate Operation.
|
|
| |
| |
|
| |
|
|
|
| |
| Main Features : |
|
 Direct Drive Mechanism maintains accurate camera positioning even at 36x magnification
|
|
|
Dre Drve Mechansm enables both quck poston changes by Hgh-speed pannng and detaled monto
|
|
|
1/4" T CCD wth approx 440,000 effectve pxels captures precse mages for hgh-qualty montorng
|
|
Day / Night function wh IR Cut Filter
|
|
Effective backlig pensation
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| Additional features : |
|
Super LoLux Sensitivity
|
|
|
Super Silent Mechanism |
|
|
Screw-free installation |
|
Dust & Waterproof Design (IP66 standard) |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| Technical specs : |
| Image device: |
¼” Interline CCD, 430000 pixels |
|
| Video output: |
Composite video signal:1.0V (p-p) 75ohms |
|
| S/N ratio: |
50 dB (AGC on) |
|
| Horizontal resolution: |
540 TVL |
|
| Min required Illumination |
0.5 lx (Video25%, F1.6, AGC on) ,1.0 lx (Video50%, F1.6, AGC on) |
|
| B&W: |
0.04 lx (Video25%, F1.6, AGC on),0.08 lx (Video50%, F1.6, AGC on) |
|
| Iris Control: |
Auto / Manual |
|
| White balance: |
ATW(Narrow/Wide), AWC |
|
| Auto electronic shutter: |
1/50 to 1/10000 (8 steps) |
|
| Lens: |
36x optical zoom, f=3.43mm to 122mm |
|
| Panning: |
|
|
| Tilting: |
-5 deg to 185 deg with tilt limit function ,0.04 to apx. 300 deg/ sec |
|
| Dust and water protection |
IP66 |
|
| Power supply |
24V AC (50Hz/60Hz) |
|
|
|
|
| |
|
